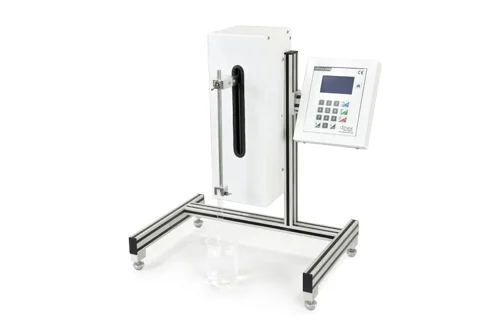

Single-vessel Dip Coating System - NXTdip-150S

Dip coating is the process of immersing a substrate into a tank containing coating material, removing the piece from the tank, and allowing it to drain. The coated piece can then be dried by force-drying or baking. It is a popular way of creating thin film coated materials along with the spin coating procedure.

Apex proudly launches another state of the art equipment to our Dip Coating line-up. Namely the NXTdip-150S. This low cost instrument has the minimalistic form factor designed to be light weight, versatile and user-friendly. The NXTdip-150S is fully Micro-Controller controlled and and ready to meet the Dip coating needs of the scientific community.


Applications

  • Layer by Layer Assemblies

  • Self-Assembled Monolayer

  • Sol-Gel Coatings

  • Glass Stainers for Biomedical Application


Product Specifications - NXTdip-150S

  • Micro-controller Controlled

  • Dipping & Lifting Speed: 0.15-600 mm/min

  • Dipping & Lifting Length: 150 mm

  • Film Length: 100 mm

  • Arrow Display for Dipping & Lifting

  • Unlimited Deposition Cycles

  • Unlimited Drying & Wetting Time

  • 200 Preset Editable Programs

  • Non-volatile Program Memory

  • Input & Controlling through Key-pad

  • Integrated Power On/Off Switch with Indicator

  • Substrate Mount/Unmount Option

  • Blank Distance Adjustment Option

  • Self-performance Test Option

  • Real-time Display of Control Processes on 4 Line LCD Console

  • User-friendly Firmware Interface

  • Power: Indian Standard

  • Wattage: 120 W (Maximum)



Intro Video


Learn more about the NXTdip-150S Dip Coating System in the Product Brochure



How it works Learn more about the Dip Coating Technology under the Technology Info tab
