LBXD Series Overview

Langmuir-Blodgett Troughs are very Essential & Useful Precision Experimental Instrument that are used to measure the Surface Phenomena during the Formation of Monolayer by compressing Molecules on the Surface of a Sub-phase (usually De-ionized Water) as well as for fabricating Single & Multi-layered Thin Films (LB Films) of Mono-molecular Thickness on a Solid Substrate. The Single & Multi-layered Thin LB Films can be used for Different Areas of Science & Technology ranging from Optics to Rheology, Nanotechnology to Biotechnology

Apex offers Three Different Variants of Double-barrier Langmuir-Blodgett Trough with LB Film Deposition System (LBXD Series) for fabricating Thin Films at the Liquid-liquid Interface & Gas-liquid Interface with Accurate Precision of Thickness with the following features

  • Trough & Barrier made of Pure PTFE

  • Double-barrier for Symmetric Compression

  • Liquid Circulating Jacket available with all Troughs for Trough Temperature Variation

  • Real-time Display of Control Processes

  • Compression Isotherm Recording

  • Sub-phase Cleaning Module

  • User-friendly Windows® XP, Windows® 7, Windows® 8, Windows® 8.1 & Windows® 10 compatible PC-Software


LBXD-NT

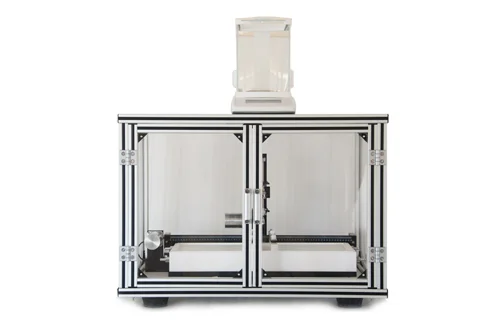

The Double-barrier Langmuir-Blodgett Trough with LB Film Deposition System - Model LBXD-NT comes with a Traditional LB Trough having Volume of 827 ml


LBXD-MT

The Double-barrier Langmuir-Blodgett Trough with LB Film Deposition System - Model LBXD-MT comes with a Traditional LB Trough having Volume of 335 ml


Related Instruments

How it works Learn more about the LB Film Deposition technology in the Technology Info tab
