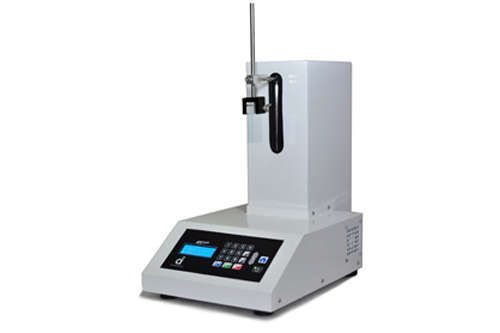

Single-vessel Dip Coating System - Xdip-SV1

Dip coating is the process of immersing a substrate into a tank containing coating material, removing the piece from the tank, and allowing it to drain. The coated piece can then be dried by force-drying or baking. It is a popular way of creating thin film coated materials along with the spin coating procedure.

Apex launches an unique Single Vessel Dip Coating instrument Xdip-SV1. This low cost state-of-the-art instrument is very sophisticated, versatile and user-friendly. The Xdip-SV1 is fully Micro-Controller controlled and is ready to cater the Scientific World.


Applications

  • Layer by Layer Assemblies
  • Self-Assembled Monolayer
  • Sol-Gel Coatings
  • Glass Stainers for Biomedical Application

Product Specifications - Xdip-SV1

  • Micro-controller Controlled
  • Dipping & Lifting Speed: 0.5-450 mm/min
  • Dipping & Lifting Length: 150 mm
  • Film Length: 100 mm
  • Arrow Display for Dipping & Lifting
  • Unlimited Deposition Cycles
  • Unlimited Drying & Wetting Time
  • 15 Preset Editable Programs
  • Non-volatile Program Memory
  • Input & Controlling through Key-pad
  • Integrated Power On/Off Switch with Indicator
  • Substrate Mount/Unmount Option
  • Blank Distance Adjustment Option
  • Self-performance Test Option
  • Real-time Display of Control Processes on 4 Line LCD Console
  • User-friendly Firmware Interface
  • Power: Indian Standard
  • Wattage: 120 W (Maximum)


Learn more about the Xdip-SV1 Dip Coating System in the Product Brochure



How it works Learn more about the Dip Coating Technology under the Technology Info tab
